Action Workflow Elements

Actions perform side effects: they save resources, answer browser requests, show UI feedback, send files, call another workflow, or communicate with users. For workflow authoring patterns, start with Authoring Workflows. For UI response behavior, see UI Integration. For background work, see Async Progress and Jobs.

Common action groups

Group	Elements	Typical use
Persistence	action/save, action/delete	Persist or remove resources.
Client response	action/response, action/set, action/redirect, action/refresh	Return data or instructions to the active browser request.
Files and documents	action/convert, action/export, action/viewFile, action/downloadFile	Generate, store, show, or download documents.
Communication	action/mail, action/notify	Send email, toast, SMS-style notifications, or other user feedback.
Orchestration	action/run	Start another workflow synchronously or asynchronously.
Access and roles	action/setRole, action/removeRole, action/resetPassword	Manage user-related side effects.

Convert documents (action/convert)

Options

Name	Type	Description
value	ContextExpression, String	Raw Data to be converted.
file	boolean: false	If the returned file should be saved as a file
parse	boolean: false	Fix LateX variables if converting to LateX
from	String	The initial format of the Data
to	String	The Format to which the Data will be converted
filters	(String) Array (table, heading_to_toc)	Names of the LateX filters to apply when converting directly to Latex
assets	ContextExpression, (Asset Object) Array	Assets to download and serve to the conversion process

Asset Object Structure

You can serve Assets either with an (unprotected) URL or Base64 encoded.

Name	Type	Description
name	String	Filename
url	String	Public Url that serves the file. Either http or https
data	Base64 String	Raw Data of the asset in Base64 format

Setting values in the client (action/set)

Tells the client via a webhook response to set field values or field properties in the active resource form. Use it for quick UI feedback, dependent fields, validation messages, or values that are only available on the backend.

Inputs

Port	Type	Description
default	Resource|Resource[]	The resource to use for base variables.

Outputs

Port	Type	Description
default	Forward	Same output as input. Data is not changed.

Options

Name	Type	Description
recipes	Dict<string, Recipe>	Field values to set on the current form/resource.
properties	Dict<string, Dict<string, Recipe>>	Field properties to set by field and selector. Common properties are validation status or validation message.
add	array	List items or values to add where supported.
copy	Recipe | null	Optional source object to copy before applying recipes.
process	boolean	Whether to process legacy values mappings where present.

Response

Webhook-JSON of type set.

Example (1)

{
    "name": "setProjectDefaults",
    "type": "action/set",
    "options": {
        "copy": null,
        "add": [],
        "recipes": {
            "billing_name": "$customer.name",
            "billing_email": "$customer.email"
        },
        "properties": []
    }
}

recipes sets fields on the active form from the current workflow context. In this example, $customer must have been loaded earlier in the workflow.

Example (2) - Full Workflow

{
    "identifier": "ValidateTaskTime",
    "title": "Validate task time",
    "async": false,
    "entry": "validateTaskTime",
    "elements": [
        {
            "name": "validateTaskTime",
            "type": "event/on_change",
            "set": {
                "selector": ":selector"
            },
            "to": {
                "default": {
                    "setWarning": ["default"]
                }
            }
        },
        {
            "name": "setWarning",
            "type": "action/set",
            "options": {
                "add": [],
                "recipes": [],
                "properties": {
                    "validateStatus": {
                        "${selector}.hours": "\"error\""
                    },
                    "validateMessage": {
                        "${selector}.hours": "\"Hours must be greater than zero.\""
                    }
                }
            }
        }
    ],
    "events": [
        {
            "identifier": "validateTaskTime",
            "type": "on_change",
            "module": "tasks"
        }
    ]
}

The on_change event can provide a selector for the changed part of the form. Use that selector when setting properties for a field inside a list item.

Adding an event emitter to a field

We have to set the “events” option, and in there set the “on_change” value to a list of event identifiers.

{
    "identifier": "hours",
    "type": "number",
    "options": {
        "events": {
            "on_change": ["validateTaskTime"]
        }
    }
}

action/buildSite

The action/buildSite element builds static sites using different strategies, depending on the site builder driver used.

Options

Driver (driver) [string]

Currently, page-depot is the only supported driver for building static sites.

Template (template) [Entity]

Entity with the capability SiteBuilderTemplate.

Pages Module (pages_module) [string] (optional)

Module identifier to request the pages. Used by the PageDepot driver.

Sections Module (sections_module) [string] (optional)

Module identifier to request available sections. Used by the PageDepot driver.

Pages Filter (pages_filter) [array] (optional)

Brezel filter array for the request to page entities. Used by the PageDepot driver.

Drivers

The default driver is page-depot.

PageDepot (page-depot)

The PageDepot driver communicates with the external PageDepot service.

Capabilities

SiteBuilderTemplate

Defines a basic template for the site builder.

Field	Type	Description
name	Text	A unique identifier for the template.
views	Multiselect	View entities with code.

PageDepotTemplate

Defines a template for web pages specific to the PageDepot service. This capability is a part of the implementation logic behind the scenes.

Field	Type	Description
name	Text	A unique identifier for the template.
base	Text	A reference to the base layout for the template.

PageDepotLayout

Defines the general layout of a web page. This includes how sections, slots, and scripts should be arranged.

Field	Type	Description
name	Text	A unique identifier for the layout.
base	Text	A reference to the base layout.
scripts	Code	Code snippets written in JavaScript to enhance the page functionality.
slots	List	A list of slots that are sub-parts of a layout.

The ‘slots’ field holds a list of slot objects. Each ‘slot’ defines a specific area on the page where sections can be inserted. Within a layout, different slots can be defined to include different sections of the page.

Each slot object contains the following sub-fields:

Field	Type	Description
slot	Text	A unique identifier for the slot.
sections	List	A list of sections that are inserted into this slot.

Under a section, following sub-fields are present:

Field	Type	Description
section	Select	The name of the section that is added to the slot. It selects from the available ‘sections’.
params	Map	A map of parameters used within the section.
subslots	Json	A JSON object denoting any subsections within the main section.
provide_slot	Text	The name of the slot that this section provides for nesting additional sections.

By arranging and configuring different slots and sections within each slot, you can create complex yet easily manageable page layouts. The actual contents of the sections and their respective parameters can be customized as per needs and are not defined in the PageDepotLayoutCapability. They would fall within other capabilities, such as PageDepotSectionCapability.

PageDepotPage

Defines a structure for a single webpage. It gives details about how the title, description, layout, script, etc. should be formed.

Field	Type	Description
name	Text	A unique identifier for the page.
title	Text	The name shown on the tab of the browser.
dynamic_title	Code	A dynamic title that changes according to some conditions.
layout	Select	The layout type in which the page should be presented.
description	Textarea	A brief description of the page.
scripts	Code	Code snippets written in JavaScript to enhance the page functionality.
slots	List	A list of slots that are sub-parts of the page.

PageDepotSection

Defines a section - a subset of the layout. Its purpose is to bring in variants in the layout.

Field	Type	Description
name	Text	A unique identifier for the section.
type	Select	The type of the section. It can either be Astro or Vue.
vars	Map	A map related to the functioning of the section.
code	Code	Code that defines the functionalities of the section.

action/deploySite

The action/deploySite element deploys static sites built by action/buildSite.

Inputs

• Default (default): a stored site, output by action/buildSite

Options

Deployer (deployer) [string]

Currently, page-depot is the only supported driver for deploying static sites.

Hostnames (hostnames) [array<string>]

List of hostnames the site should be available under. Used by the PageDepot driver.

Deployers

The default driver is page-depot.

PageDepot (page-depot)

The PageDepot driver communicates with the external PageDepot service.

Running another workflow (action/run)

Runs another workflow. This can be either synchronous or asynchronous.

Options

Name	Type	Description
workflow	string	Identifier of the workflow to run.
async	boolean | null	Whether the called workflow should run asynchronously.
queue	string | null	Optional queue for asynchronous runs.
scope	boolean	Whether to create a new context for the called workflow.
input	object | array	Variables to set in the new context when scope is true.

If scope is false, the called workflow runs in the current context. Existing variables remain accessible.

If scope is true, a new context is created for the called workflow. Values from input are set as variables in that new context. The output of action/run is the output of the last element of the called workflow.

{
    "name": "startPublishJob",
    "type": "action/run",
    "options": {
        "workflow": "PublishProject",
        "async": true,
        "queue": null,
        "scope": true,
        "input": {
            "project": "$project"
        }
    }
}

The previous context is restored after action/run completes.

Notify (action/notify)

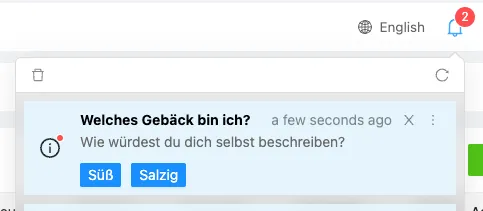

Sends a notification to the notification center and over Web push, if available.

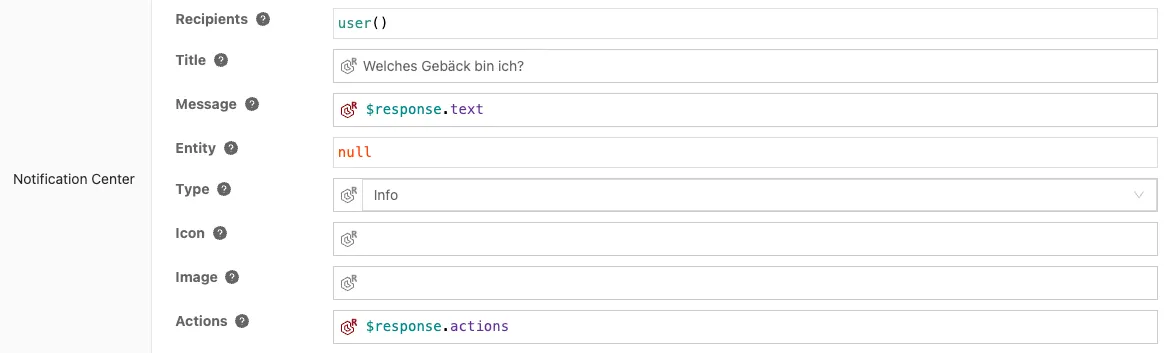

Options

Below are the available options for creating notifications:

• recipients: Specifies the recipient of the notification, which can be a user, a list of users, a role slug, or a list of role slugs. If this field is omitted, the notification will be sent to the current user. If set to null in recipe mode, the notification will not be sent to anyone.

• title: Specify the title of the notification.

• message: The message of the notification.

• entity: Append an entity, such as a File entity, to the notification using this field.

• type: The type of notification, which can be one of info, warning, or error.

• icon: The icon to be displayed in the notification. You can provide an absolute URL or a virtual path pointing to a Brezel file (e.g., /static/icon.png). If you use a virtual path, a permanent public absolute URL to the file will be generated, containing a share token. If you are in recipe mode, you can also use a file entity, with the same sharing behavior as the virtual path.

• image: The image to be displayed in the notification. You can provide an absolute URL, a virtual path, or a file entity.

• actions: Provide a list of action buttons to display in the notification. You can provide a tokenized list of action names (e.g., “Accept, Deny”), an array of action identifiers (in recipe mode), or an array of action dictionaries (in recipe mode), where each dictionary specifies the action button properties.

:::tip If actions is given and non-empty, this element checkpoints! :::

Outputs

• action: fired when the user clicks on an action, with the selected action identifier as the data.
